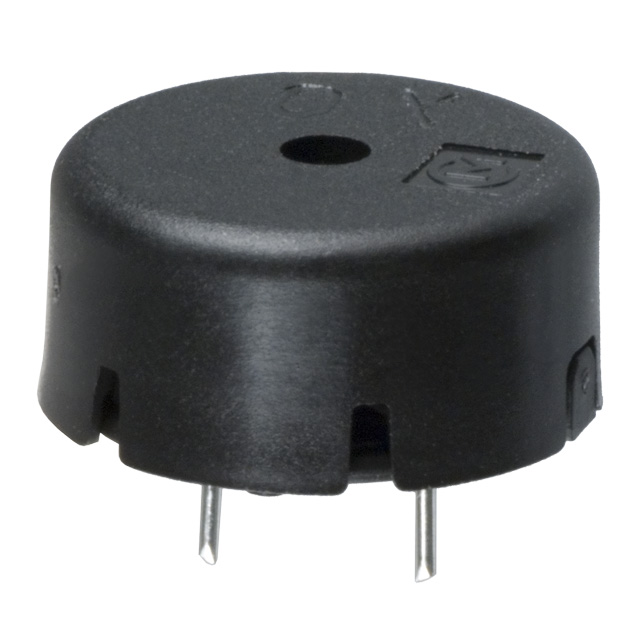

PKM13EPYH4002-B0

PKM13EPYH4002-B0



Производитель:

Murata Electronics North America
Описание:
 BUZZER PIEZO 30VP-P 4KHZ PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 08+

Datasheet (Техническое описание) PKM13EPYH4002-B0

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM13EPYH4002-B0
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, External Drive
Sound Pressure Level70dB
Mounting TypeThrough Hole
Capacitance @ Frequency5500pF @ 1kHz
Frequency4kHz
PackagingBulk
Operating Mode-
Voltage Range30Vp-p (max)
Voltage - Rated 3Vp-p
Current Rating-
Size / DimensionCircular - 12.6mm Dia x 6.9mm H
TerminationSolder Pins/Posts
Capacitance*
Adjustment Type*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM13EPYH4002 B0
PKM13EPYH4002B0
490 4697 ND
4904697ND
490-4697
