PKM24SPH3805

PKM24SPH3805



Производитель:

Murata Electronics North America
Описание:

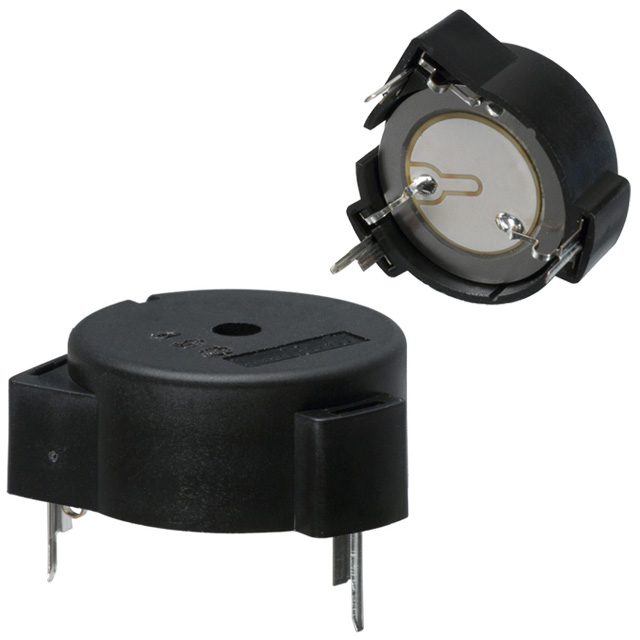

 BUZZER PIEZO 20VDC 3.8KHZ PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 08+

Datasheet (Техническое описание) PKM24SPH3805

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM24SPH3805
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, Self Drive (External Drive with Feedback)
Sound Pressure Level90dB
Mounting TypeThrough Hole
Capacitance @ Frequency-
Frequency3.8kHz
PackagingBulk
Operating Mode-
Voltage Range3 ~ 20VDC
Voltage - Rated 12VDC
Current Rating12mA
Size / DimensionCircular - 24mm Dia x 11mm H
TerminationSolder Pins/Posts
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM24SPH3805
PKM24SPH3805
490 4703 ND
4904703ND
490-4703
