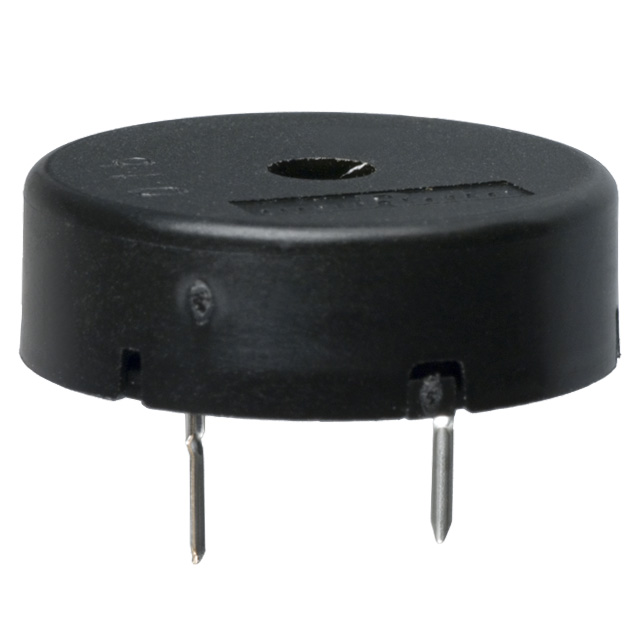

PKM22EPPH4001-B0

PKM22EPPH4001-B0



Производитель:

Murata Electronics North America
Описание:
 BUZZER PIEZO 25VP-P 4KHZ PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 08+

Datasheet (Техническое описание) PKM22EPPH4001-B0

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM22EPPH4001-B0
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, External Drive
Sound Pressure Level75dB
Mounting TypeThrough Hole
Capacitance @ Frequency12000pF @ 1kHz
Frequency4kHz
PackagingBulk
Operating Mode-
Voltage Range25Vp-p (max)
Voltage - Rated 3Vp-p
Current Rating-
Size / DimensionCircular - 22mm Dia x 7mm H
TerminationSolder Pins/Posts
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM22EPPH4001 B0
PKM22EPPH4001B0
490 4692 ND
4904692ND
490-4692
