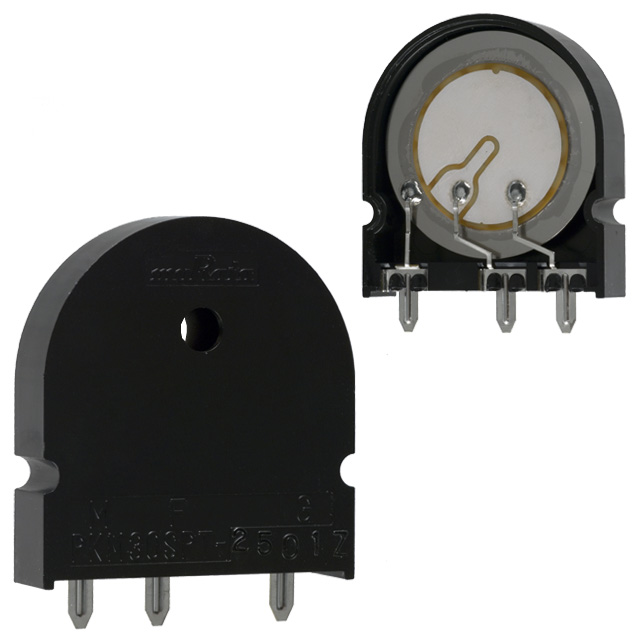

PKM30SPTH2501-B0

PKM30SPTH2501-B0



Производитель:

Murata Electronics North America
Описание:
 BUZZER PIEZO 20VDC 2.5KHZ PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 09+

Datasheet (Техническое описание) PKM30SPTH2501-B0

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM30SPTH2501-B0
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, Self Drive (External Drive with Feedback)
Sound Pressure Level75dB
Mounting TypeThrough Hole
Capacitance @ Frequency-
Frequency2.5kHz
PackagingBulk
Operating Mode-
Voltage Range3~20VDC
Voltage - Rated 12VDC
Current Rating20mA
Size / DimensionRectangular - 30.5mm L x 7.7mm W x 33.25mm H
TerminationSolder Pins/Posts
Capacitance*
Adjustment Type*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM30SPTH2501 B0
PKM30SPTH2501B0
490 4704 ND
4904704ND
490-4704
