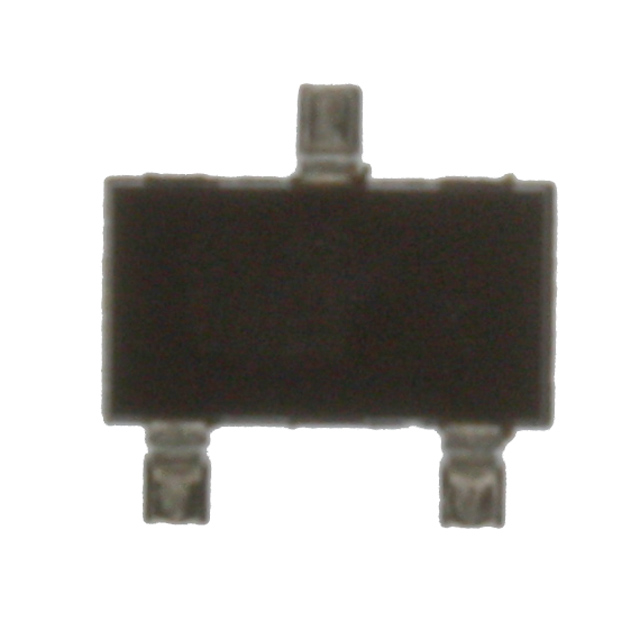

RTR025N03TL

Производитель:

Rohm Semiconductor(VA)

Купить

форма запроса

Описание:

MOSFET N-CH 30V 2.5A TSMT3

Категория:

Discrete Semiconductor Products

Корпус:

2007+

Год:

Technical/Catalog Information	RTR025N03TL
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	2.5A
Rds On (Max) @ Id, Vgs	92 mOhm @ 2.5A, 4.5V
Input Capacitance (Ciss) @ Vds	220pF @ 10V
Power - Max	1W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	4.6nC @ 4.5V
Package / Case	TSMT3
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RTR025N03TL RTR025N03TL RTR025N03TLDKR ND RTR025N03TLDKRND RTR025N03TLDKR
