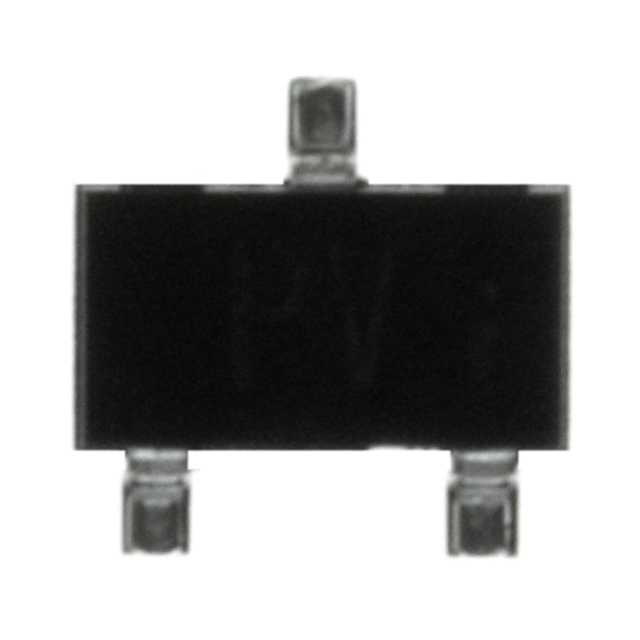

RTR030N05TL

Производитель:

Rohm Semiconductor

Купить

форма запроса

Описание:

MOSFET N-CH 45V 3A TSMT3

Категория:

Discrete Semiconductor Products

Корпус:

Год:

Technical/Catalog Information	RTR030N05TL
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	45V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	67 mOhm @ 3A, 4.5V
Input Capacitance (Ciss) @ Vds	510pF @ 10V
Power - Max	1W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	6.2nC @ 4.5V
Package / Case	TSMT3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RTR030N05TL RTR030N05TL RTR030N05TLCT ND RTR030N05TLCTND RTR030N05TLCT
