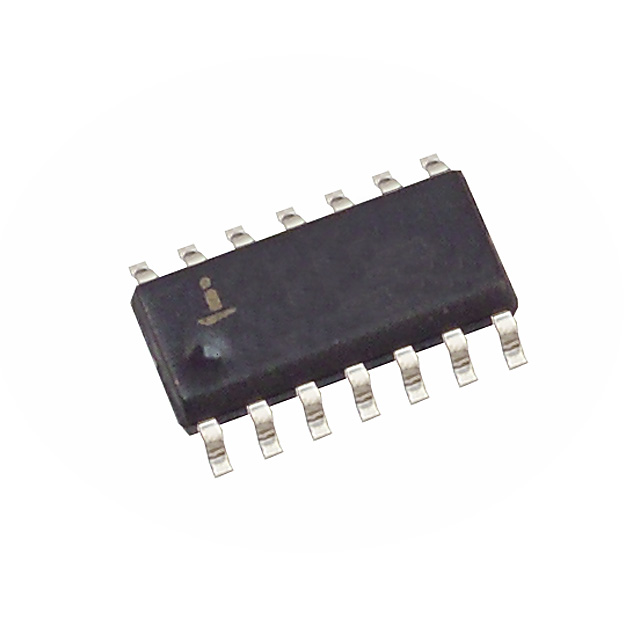

ISL6614CB-T

ISL6614CB-T



Производитель:

Intersil
Описание:
 IC DRIVER DUAL SYNC BUCK 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SO-8
Год:
 05+

Datasheet (Техническое описание) ISL6614CB-T

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationISL6614CB-T
VendorIntersil
CategoryIntegrated Circuits (ICs)
ConfigurationHigh and Low Side, Synchronous
Voltage - Supply10.8 V ~ 13.2 V
Current - Peak1.25A
Delay Time10.0ns
Package / Case14-SOIC (3.9mm Width), 14-SOL
PackagingTape & Reel (TR)
Number of Outputs4
Input TypePWM
Number of Configurations2
Operating Temperature0°C ~ 85°C
High Side Voltage - Max (Bootstrap)36V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ISL6614CB T
ISL6614CBT
