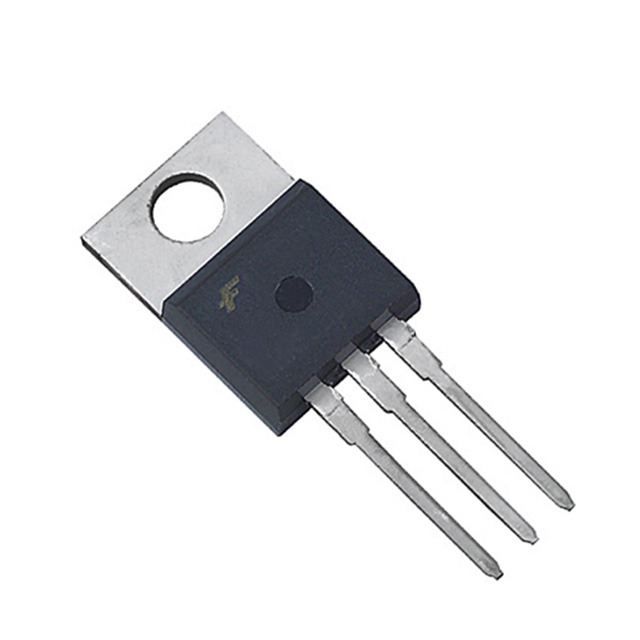

ISL9N302AP3

ISL9N302AP3



Производитель:

Fairchild Semiconductor
Описание:
 MOSFET N-CH PWM 30V 75A TO-220AB
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 06+

Datasheet (Техническое описание) ISL9N302AP3

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationISL9N302AP3
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C75A
Rds On (Max) @ Id, Vgs2.5 mOhm @ 75A, 10V
Input Capacitance (Ciss) @ Vds 11000pF @ 15V
Power - Max345W
PackagingTube
Gate Charge (Qg) @ Vgs300nC @ 10V
Package / CaseTO-220AB
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ISL9N302AP3
ISL9N302AP3
