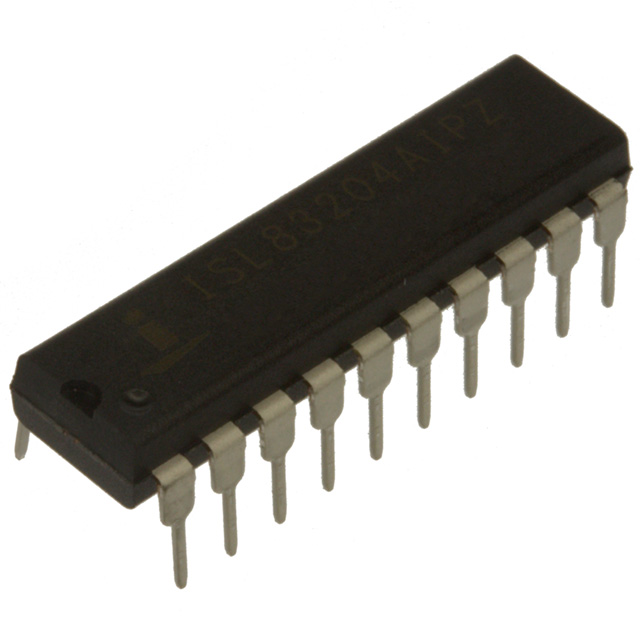

ISL83204AIPZ

ISL83204AIPZ



Производитель:

Intersil
Описание:
 IC FET DVR 60V/2.5A HF 20-PDIP
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) ISL83204AIPZ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationISL83204AIPZ
VendorIntersil
CategoryIntegrated Circuits (ICs)
ConfigurationH Bridge
Voltage - Supply9.5 V ~ 15 V
Current - Peak2.6A
Delay Time70ns
Package / Case20-DIP (300 mil)
PackagingTube
Number of Outputs4
Input TypePWM
Number of Configurations1
Operating Temperature-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)75V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ISL83204AIPZ
ISL83204AIPZ
