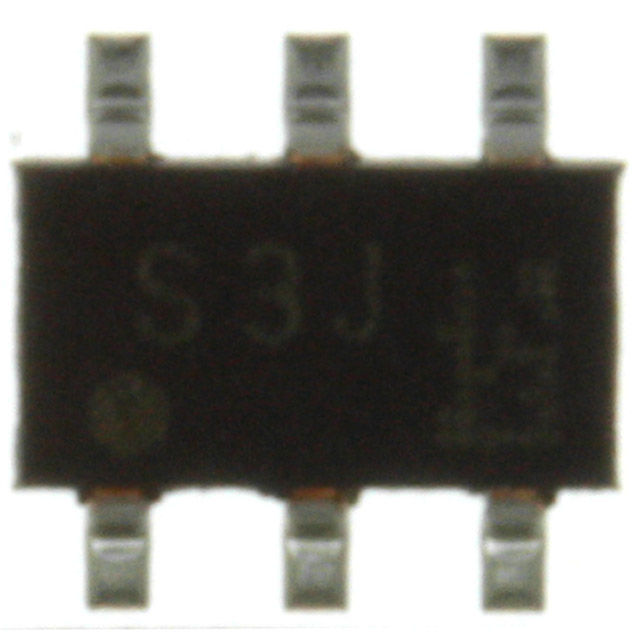

TPC6109-H(TE85L,F)

TPC6109-H(TE85L,F)



Производитель:

Toshiba (VA)
Описание:
 MOSFET P-CH 30V 5A VS-6
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) TPC6109-H(TE85L,F)

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPC6109-H(TE85L,F)
VendorToshiba (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityP-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C5A
Rds On (Max) @ Id, Vgs59 mOhm @ 2.5A, 10V
Input Capacitance (Ciss) @ Vds 490pf @ 10V
Power - Max700mW
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs12.3nC @ 10V
Package / Case2-3T1A
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPC6109 H TE85L,F
TPC6109HTE85L,F
TPC6109 HTE85LFDKR ND
TPC6109HTE85LFDKRND
TPC6109-HTE85LFDKR
