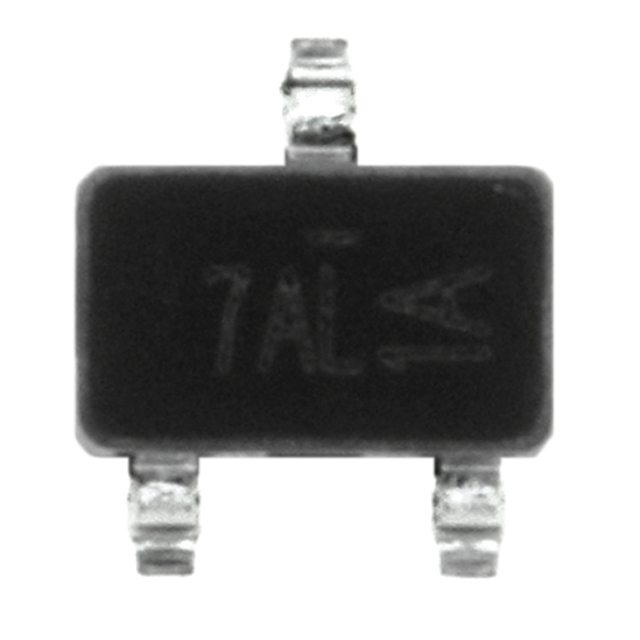

AO7407

Производитель:

Alpha & Omega Semiconductor Inc (VA)

Купить

форма запроса

Описание:

MOSFET P-CH -20V -1.2A SC70-3

Категория:

Discrete Semiconductor Products

Корпус:

SOT-323

Год:

07+???ROHS??‰

Technical/Catalog Information	AO7407
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	1.2A
Rds On (Max) @ Id, Vgs	135 mOhm @ 1.2A, 4.5V
Input Capacitance (Ciss) @ Vds	540pF @ 10V
Power - Max	350mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	6.2nC @ 4.5V
Package / Case	SC-70
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AO7407 AO7407 785 1088 6 ND 78510886ND 785-1088-6
