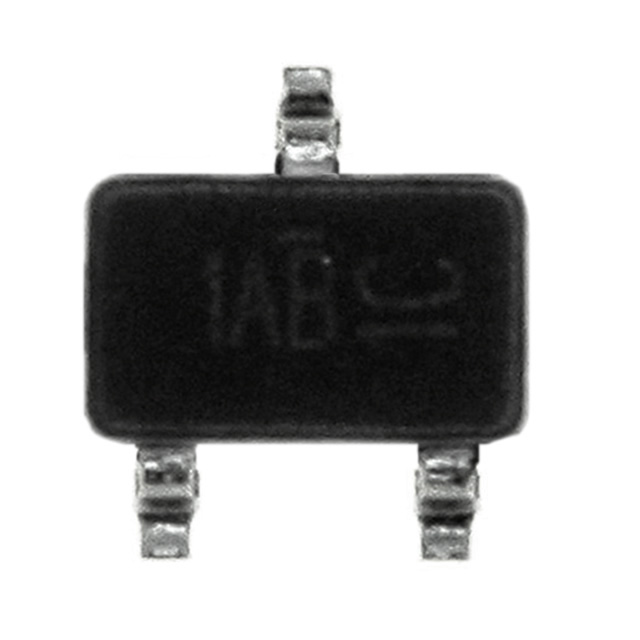

AO7401

Производитель:

Alpha & Omega Semiconductor Inc

Купить

форма запроса

Описание:

MOSFET P-CH -30V -1.2A SC70-3

Категория:

Discrete Semiconductor Products

Корпус:

SOT-323

Год:

07+???ROHS??‰

Technical/Catalog Information	AO7401
Vendor	Alpha & Omega Semiconductor Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	1.2A
Rds On (Max) @ Id, Vgs	150 mOhm @ 1.2A, 10V
Input Capacitance (Ciss) @ Vds	409pF @ 15V
Power - Max	350mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	5.06nC @ 4.5V
Package / Case	SC-70
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AO7401 AO7401 785 1085 2 ND 78510852ND 785-1085-2
