AI-4328-P-C28-2-R

AI-4328-P-C28-2-R



Производитель:

Projects Unlimited
Описание:

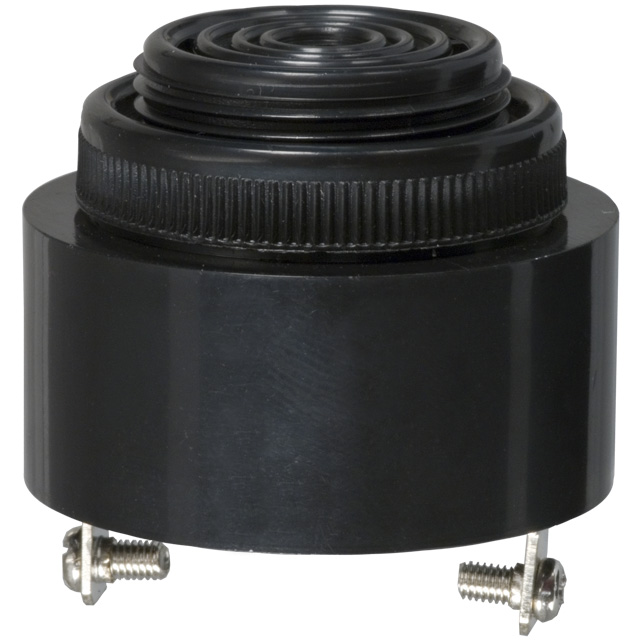

 BUZZER PIEZO 12VDC 43MM PANEL
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) AI-4328-P-C28-2-R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAI-4328-P-C28-2-R
VendorProjects Unlimited
CategoryAudio Products
TypePiezo Indicator, Internal Drive
Sound Pressure Level97dB
Mounting TypePanel Mount
Capacitance @ Frequency-
Frequency2.8kHz
PackagingBulk
Operating ModeContinuous
Voltage Range4 ~ 28VDC
Voltage - Rated 12VDC
Current Rating8mA
Size / DimensionCircular - 43mm Dia x 33mm H
TerminationScrew Terminals
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AI 4328 P C28 2 R
AI4328PC282R
668 1054 ND
6681054ND
668-1054
