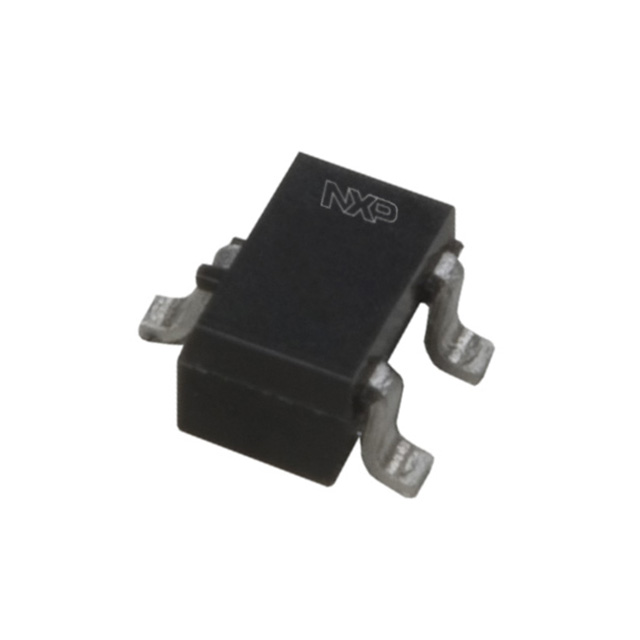

BFS520,115

BFS520,115



Производитель:

NXP Semiconductors
Описание:
 TRANS NPN 70MA 15V 9GHZ SOT323
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) BFS520,115

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationBFS520,115
VendorNXP Semiconductors
CategoryDiscrete Semiconductor Products
Frequency - Transition9GHz
Noise Figure (dB Typ @ f)1.1dB ~ 1.6dB @ 900MHz
Current - Collector (Ic) (Max)70mA
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 20mA, 6V
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Gain13dB ~ 14dB
Power - Max300mW
Compression Point (P1dB)17dBm
Package / CaseSC-70-3, SOT-323-3
PackagingTape & Reel (TR)
Drawing Number568; SOT323; ; 3
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BFS520,115
BFS520,115
568 1654 2 ND
56816542ND
568-1654-2
