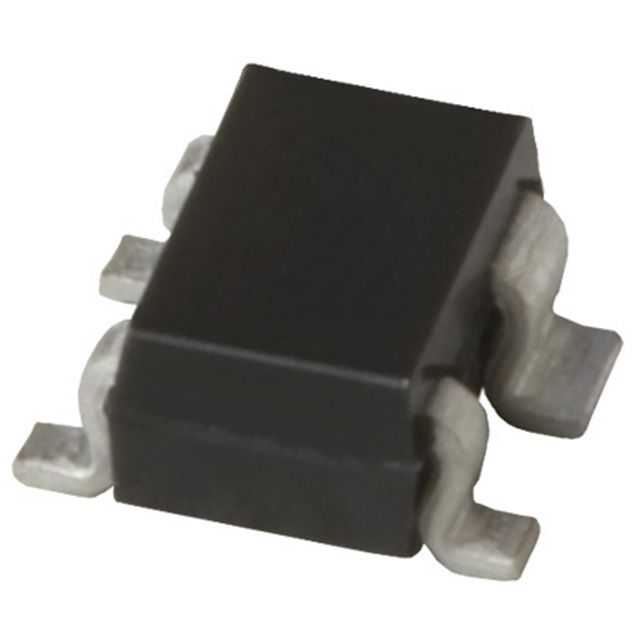

| Technical/Catalog Information | BFP620E6327 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Frequency - Transition | 65GHz |
| Noise Figure (dB Typ @ f) | 0.7dB ~ 1.3dB @ 1.8GHz ~ 6GHz |
| Current - Collector (Ic) (Max) | 80mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 50mA, 1.5V |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 2.3V |
| Gain | 21.5dB |
| Power - Max | 185mW |
| Compression Point (P1dB) | 14.5dBm |
| Package / Case | SC-70-4, SC-82AB, SOT-323-4, SOT-343 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Request Inventory Verification |
| RoHS Status | Request Inventory Verification |
| Other Names | BFP620E6327
BFP620E6327
BFP620INTR ND
BFP620INTRND
BFP620INTR
|
