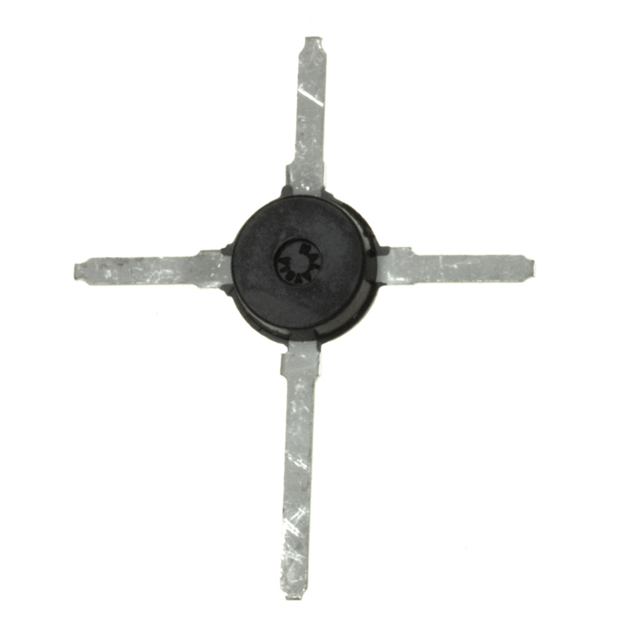

MRF581

MRF581



Производитель:

Microsemi-PPG
Описание:
 TRANS NPN 18V 200MA MACRO X
Категория:
 Discrete Semiconductor Products
Корпус:
 VHF
Год:
 2000

Datasheet (Техническое описание) MRF581

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationMRF581
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Frequency - Transition5GHz
Noise Figure (dB Typ @ f)3dB ~ 3.5dB @ 500MHz
Current - Collector (Ic) (Max)200mA
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 50mA, 5V
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)18V
Gain13dB ~ 15.5dB
Power - Max2.5W
Compression Point (P1dB)-
Package / Case*
Packaging*
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MRF581
MRF581
MRF581MI ND
MRF581MIND
MRF581MI
