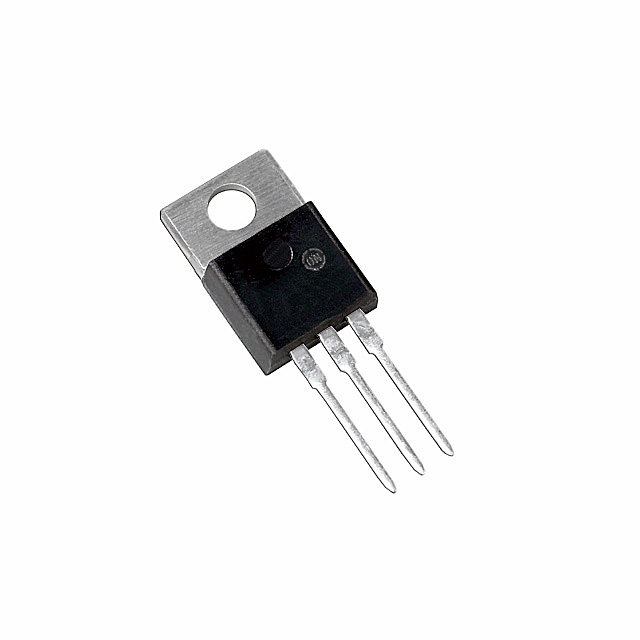

MC7815BTG

MC7815BTG



Производитель:

ON Semiconductor
Описание:
 IC REG VOLT POS 1A 15V TO220
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 07+PBFREE

Datasheet (Техническое описание) MC7815BTG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationMC7815BTG
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
Regulator TopologyPositive Fixed
Current - Output1A
Voltage - Output15V
Operating Temperature-40°C ~ 125°C
Voltage - Input17.5 ~ 30 V
Number of Regulators1
Current - Limit (Min)2.2A
Current Short Circuit (Isc)200mA
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC7815BTG
MC7815BTG
MC7815BTGOS ND
MC7815BTGOSND
MC7815BTGOS
