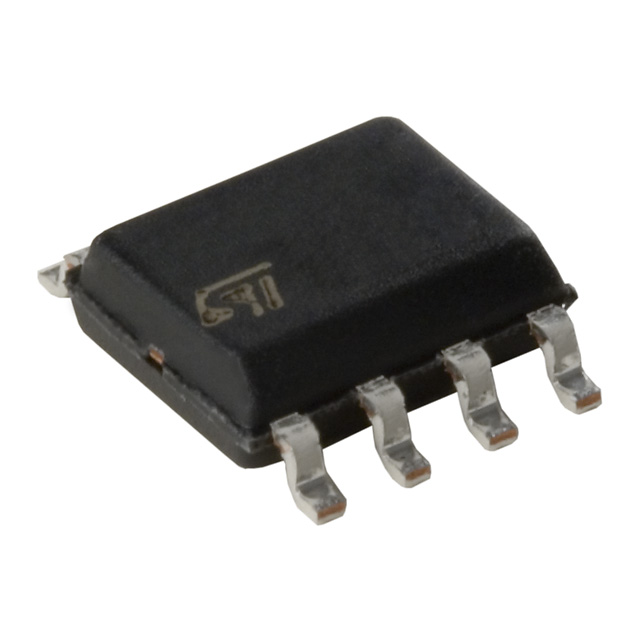

STS9NF3LL

STS9NF3LL



Производитель:

STMicroelectronics
Описание:
 MOSFET N-CH 30V 9A 8-SOIC
Категория:
 Discrete Semiconductor Products
Корпус:
 06+
Год:
 --

Datasheet (Техническое описание) STS9NF3LL

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTS9NF3LL
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C9A
Rds On (Max) @ Id, Vgs19 mOhm @ 4.5A, 10V
Input Capacitance (Ciss) @ Vds 800pF @ 25V
Power - Max2.5W
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs17nC @ 5V
Package / Case8-SOIC (3.9mm Width)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STS9NF3LL
STS9NF3LL
497 8196 1 ND
49781961ND
497-8196-1
