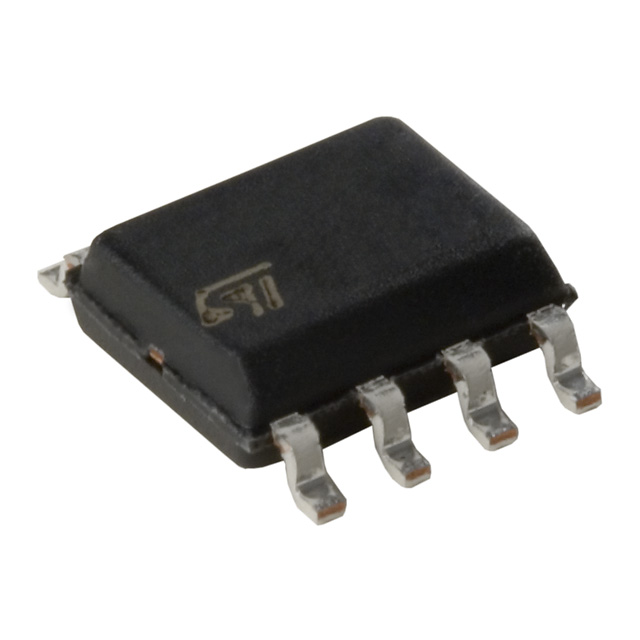

STS5DNF20V

STS5DNF20V



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET 2N-CH 20V 5A 8-SOIC
Категория:
 Discrete Semiconductor Products
Корпус:
 SOP-8-2500/?›?
Год:
 04+

Datasheet (Техническое описание) STS5DNF20V

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTS5DNF20V
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C5A
Rds On (Max) @ Id, Vgs40 mOhm @ 2.5A, 4.5V
Input Capacitance (Ciss) @ Vds 460pF @ 25V
Power - Max2W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs11.5nC @ 4.5V
Package / Case8-SOIC (3.9mm Width)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STS5DNF20V
STS5DNF20V
497 3229 6 ND
49732296ND
497-3229-6
