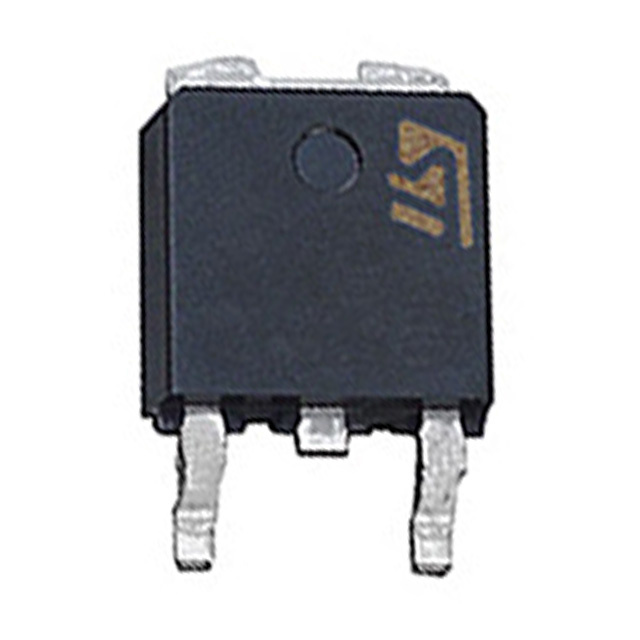

STD55NH2LLT4

STD55NH2LLT4



Производитель:

STMicroelectronics
Описание:
 MOSFET N-CH 24V 40A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 ST

Datasheet (Техническое описание) STD55NH2LLT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD55NH2LLT4
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25° C40A
Rds On (Max) @ Id, Vgs11 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds 990pF @ 25V
Power - Max60W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs11nC @ 4.5V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD55NH2LLT4
STD55NH2LLT4
497 4104 2 ND
49741042ND
497-4104-2
