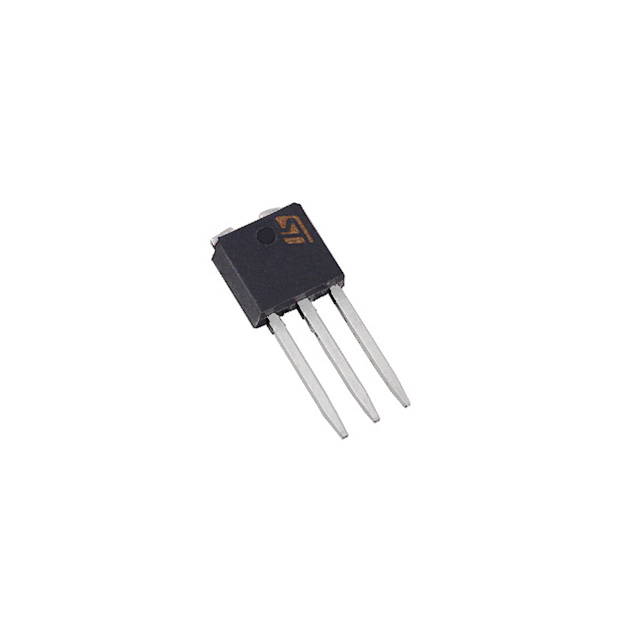

STD12NF06-1

STD12NF06-1



Производитель:

STMicroelectronics
Описание:
 MOSFET N-CH 60V 12A IPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 289
Год:
 ST

Datasheet (Техническое описание) STD12NF06-1

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD12NF06-1
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C12A
Rds On (Max) @ Id, Vgs100 mOhm @ 6A, 10V
Input Capacitance (Ciss) @ Vds 315pF @ 25V
Power - Max30W
PackagingTube
Gate Charge (Qg) @ Vgs12nC @ 10V
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD12NF06 1
STD12NF061
