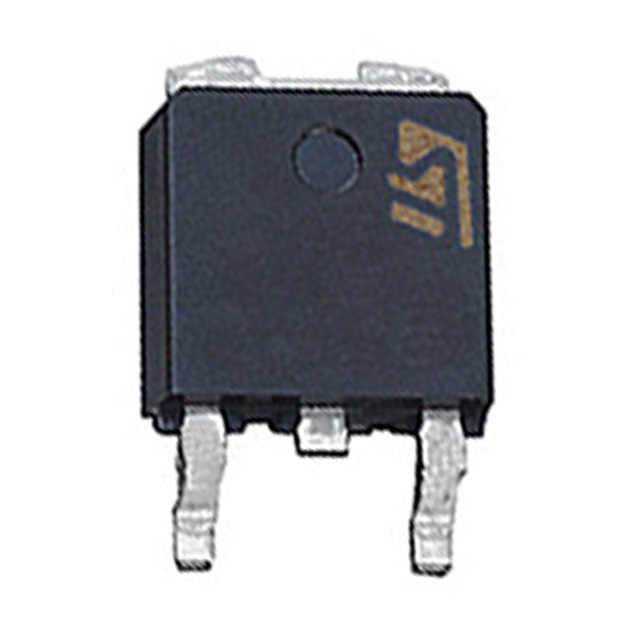

STD3NK80ZT4

STD3NK80ZT4



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 800V 2.5A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-252
Год:
 06+

Datasheet (Техническое описание) STD3NK80ZT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD3NK80ZT4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)800V
Current - Continuous Drain (Id) @ 25° C2.5A
Rds On (Max) @ Id, Vgs4.5 Ohm @ 1.25A, 10V
Input Capacitance (Ciss) @ Vds 485pF @ 25V
Power - Max70W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs19nC @ 10V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD3NK80ZT4
STD3NK80ZT4
497 7968 6 ND
49779686ND
497-7968-6
