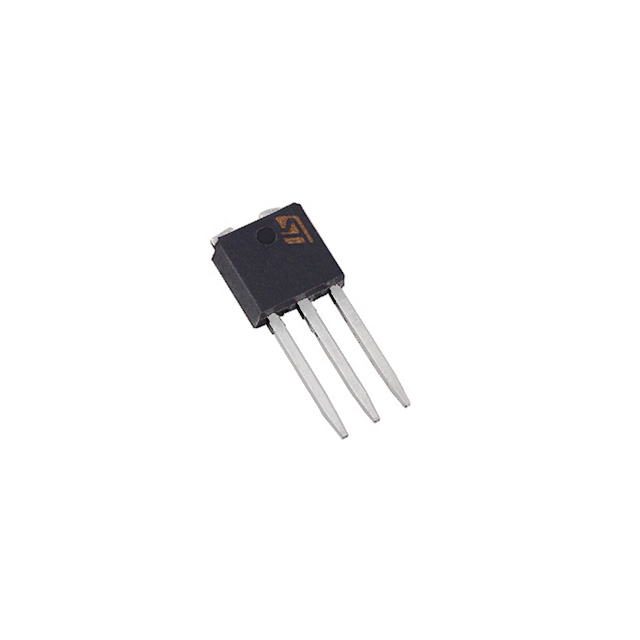

STD1805-1

STD1805-1



Производитель:

STMicroelectronics
Описание:
 TRANSISTOR NPN 60V 3A I-PAK
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-251
Год:
 08+

Datasheet (Техническое описание) STD1805-1

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD1805-1
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)60V
Current - Collector (Ic) (Max)5A
Power - Max15W
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 2A
Frequency - Transition150MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD1805 1
STD18051
497 3518 5 ND
49735185ND
497-3518-5
