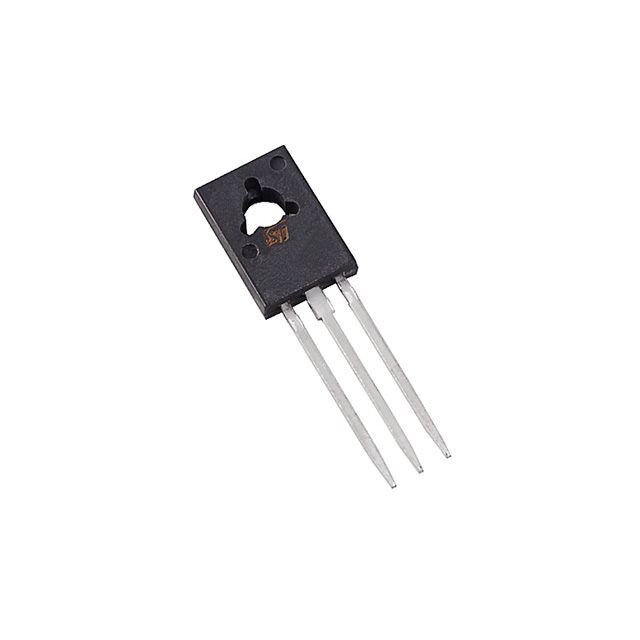

ST13003

ST13003



Производитель:

STMicroelectronics
Описание:
 TRANSISTOR PWR NPN FAST HV SOT32
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 07+

Datasheet (Техническое описание) ST13003

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationST13003
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)400V
Current - Collector (Ic) (Max)1.5A
Power - Max40W
DC Current Gain (hFE) (Min) @ Ic, Vce8 @ 500mA, 2V
Vce Saturation (Max) @ Ib, Ic500mV @ 100mA, 500mA
Frequency - Transition-
Current - Collector Cutoff (Max)1mA
Mounting TypeThrough Hole
Package / CaseSOT-32-3, TO-126-3
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ST13003
ST13003
