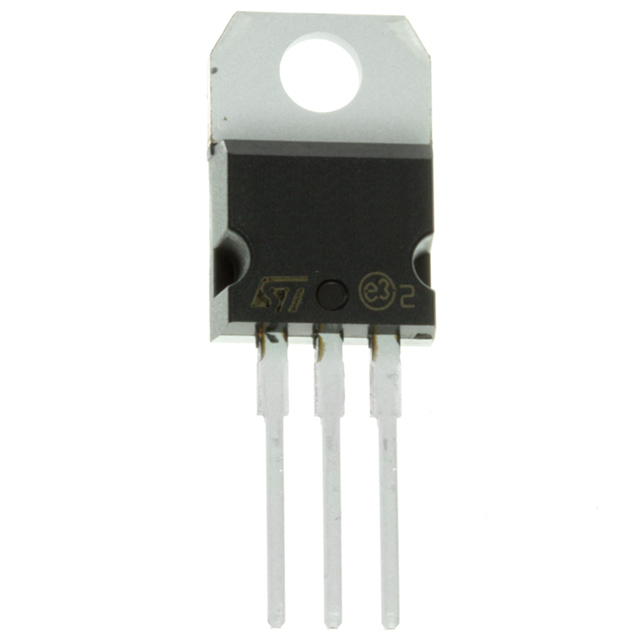

ST13009

ST13009



Производитель:

STMicroelectronics
Описание:
 PLANAR BIPOLAR NPN 900V 6 MASKS
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 7

Datasheet (Техническое описание) ST13009

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationST13009
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)400V
Current - Collector (Ic) (Max)12A
Power - Max100W
DC Current Gain (hFE) (Min) @ Ic, Vce10 @ 8A, 5V
Vce Saturation (Max) @ Ib, Ic1.25V @ 1.6A, 8A
Frequency - Transition-
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ST13009
ST13009
497 3510 ND
4973510ND
497-3510
