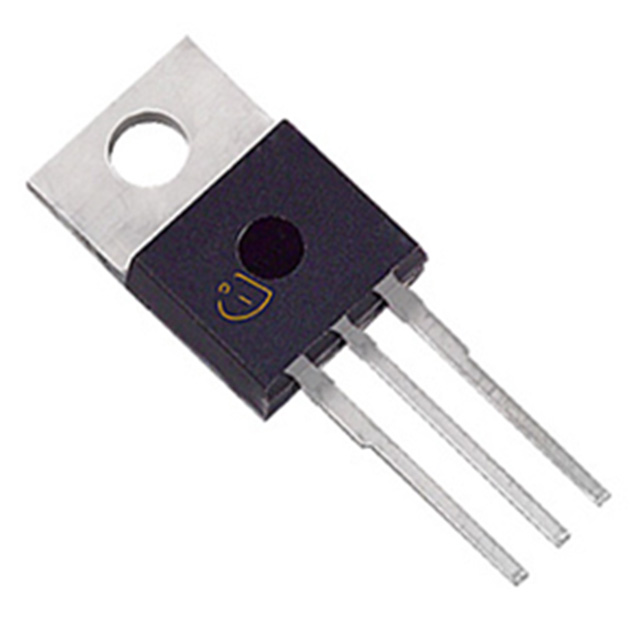

SPP18P06P

SPP18P06P



Производитель:

Infineon Technologies
Описание:
 MOSFET P-CH 60V 18.7A TO-220AB
Категория:
 Discrete Semiconductor Products
Корпус:
 T0-220
Год:
 06+

Datasheet (Техническое описание) SPP18P06P

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSPP18P06P
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityP-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C18.7A
Rds On (Max) @ Id, Vgs130 mOhm @ 13.2A, 10V
Input Capacitance (Ciss) @ Vds 860pF @ 25V
Power - Max81.1W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs28nC @ 10V
Package / CaseTO-220AB
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPP18P06P
SPP18P06P
SPP18P06PIN ND
SPP18P06PINND
SPP18P06PIN
