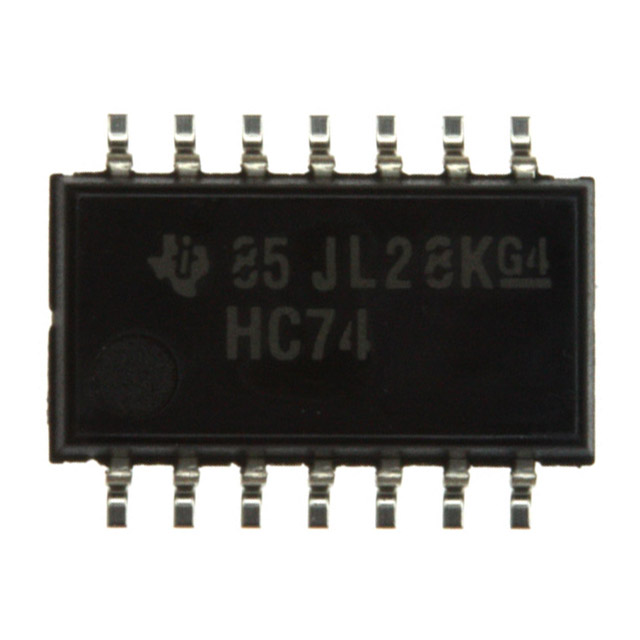

| Technical/Catalog Information | SN74HC74NSR |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ |
| Function | Set and Reset |
| Number of Bits per Element | 1 |
| Number of Elements | 2 - Dual |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Output Type | Differential |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Packaging | Digi-Reel? |
| Operating Temperature | -40°C ~ 85°C |
| Delay Time - Propagation | 15ns |
| Frequency - Clock | 60MHz |
| Voltage - Supply | 2 V ~ 6 V |
| Drawing Number | 296; 4040062; NS; 14, 16, 20, 24 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SN74HC74NSR
SN74HC74NSR
296 8371 6 ND
29683716ND
296-8371-6
|
