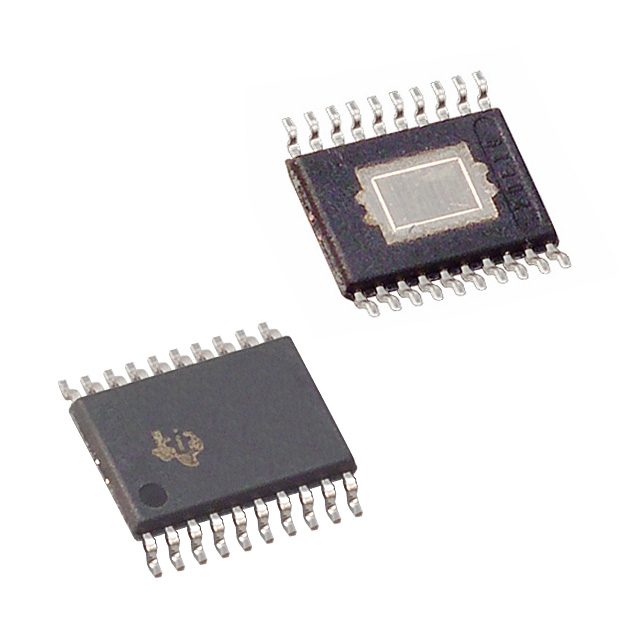

TPS60100PWP

TPS60100PWP



Производитель:

Texas Instruments
Описание:
 IC 3.3V 0.2A DC/DC CONV 20-HTSSO
Категория:
 Integrated Circuits (ICs)
Корпус:
 TSSOP
Год:
 0017+

Datasheet (Техническое описание) TPS60100PWP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS60100PWP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeSwitched Capacitor (Charge Pump), Step-Up (Boost)
Number of Outputs1
Voltage - Input1.8 ~ 3.6 V
Voltage - Output3.3V
Current - Output200mA
Power - Output18.5W
Package / Case20-TSSOP Exposed Pad, 20-eTSSOP, 20-HTSSOP
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching300kHz
Drawing Number296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS60100PWP
TPS60100PWP
296 2263 5 ND
29622635ND
296-2263-5
