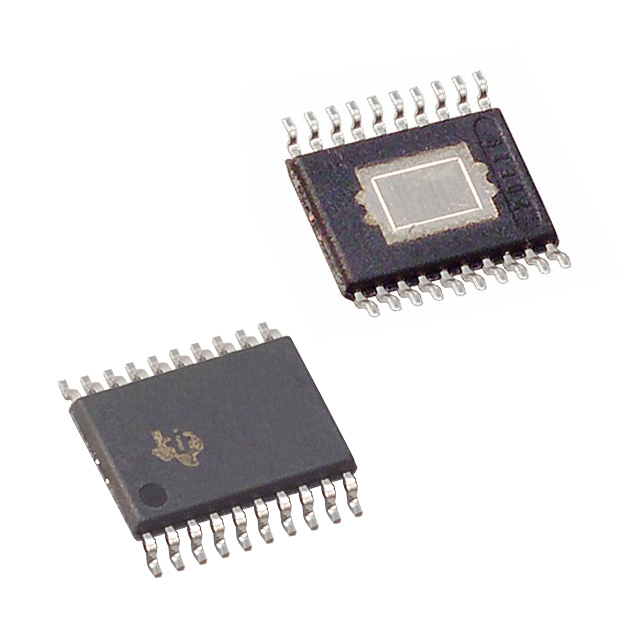

TPS54310PWP

TPS54310PWP



Производитель:

Texas Instruments
Описание:
 IC SYNC BUCK PWM C0NV 20-HTSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 HTSSOP
Год:
 07+

Datasheet (Техническое описание) TPS54310PWP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS54310PWP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input3 ~ 6 V
Voltage - Output0.9 ~ 3.3 V
Current - Output3A
Power - Output3.85W
Package / Case20-TSSOP Exposed Pad, 20-eTSSOP, 20-HTSSOP
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)59 mOhm
Operating Temperature-40°C ~ 125°C
Frequency - Switching350kHz, 550kHz
Drawing Number296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS54310PWP
TPS54310PWP
296 12509 5 ND
296125095ND
296-12509-5
