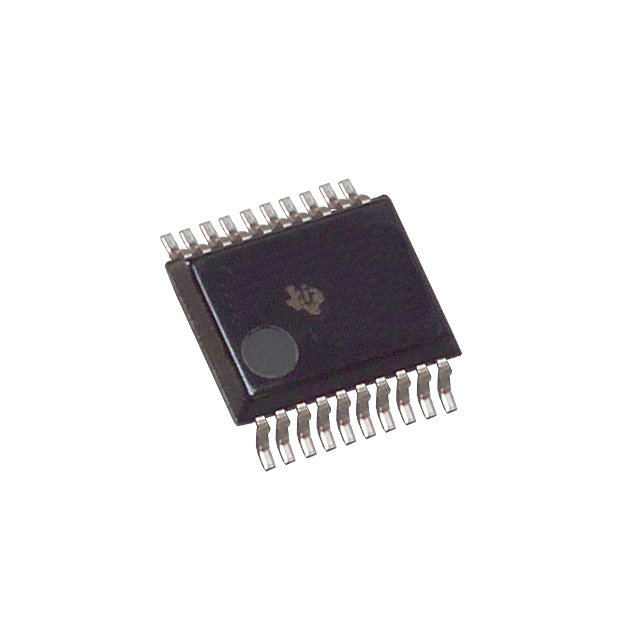

TPS5103IDBR

TPS5103IDBR



Производитель:

Texas Instruments
Описание:
 IC MULTI MODE DC-DC CTRLR 20SSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 2003+

Datasheet (Техническое описание) TPS5103IDBR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS5103IDBR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input4.5 ~ 25 V
Voltage - Output1.2 ~ 24 V
Current - Output3A
Power - Output801mW
Package / Case20-SSOP
PackagingTape & Reel (TR)
Internal Switch(s)No
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching500kHz
Drawing Number296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS5103IDBR
TPS5103IDBR
