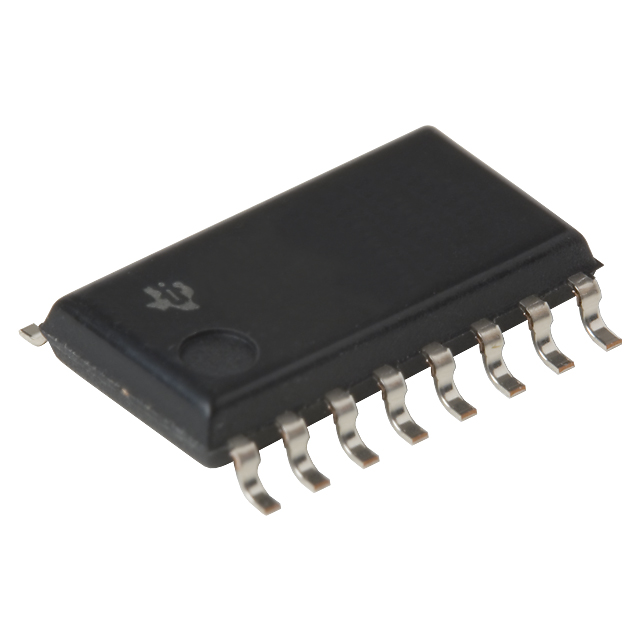

| Technical/Catalog Information | SN74HC174NSR |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (5.3mm Width), 16-SO, 16-SOEIIJ |
| Function | Master Reset |
| Number of Bits per Element | 6 |
| Number of Elements | 1 - Single |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Output Type | Non-Inverted |
| Trigger Type | Positive Edge |
| Type | D-Type Bus |
| Packaging | Digi-Reel? |
| Operating Temperature | -40°C ~ 85°C |
| Delay Time - Propagation | 14ns |
| Frequency - Clock | 50MHz |
| Voltage - Supply | 2 V ~ 6 V |
| Drawing Number | 296; 4040062; NS; 14, 16, 20, 24 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SN74HC174NSR
SN74HC174NSR
296 13215 6 ND
296132156ND
296-13215-6
|
