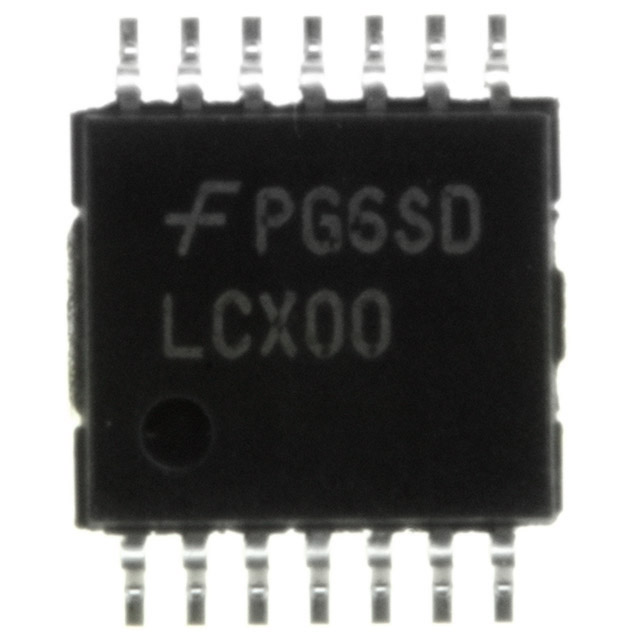

74LCX00MTCX

74LCX00MTCX



Производитель:

Fairchild Semiconductor (VA)
Описание:
 IC GATE NAND QUAD 2-INP 14TSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 TSSOP
Год:
 08+

Datasheet (Техническое описание) 74LCX00MTCX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LCX00MTCX
VendorFairchild Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-TSSOP
Logic TypeNAND Gate
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low24mA, 24mA
Supply Voltage2 V ~ 3.6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 3.6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LCX00MTCX
74LCX00MTCX
74LCX00MTCXDKR ND
74LCX00MTCXDKRND
74LCX00MTCXDKR
