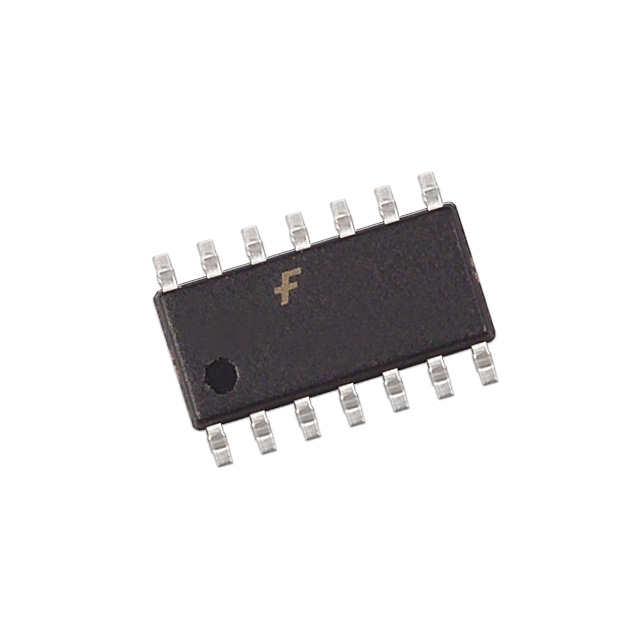

74LVX32SJX

74LVX32SJX



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE OR QUAD 2IN LV 14SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP14
Год:
 218

Datasheet (Техническое описание) 74LVX32SJX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LVX32SJX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeOR Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low4mA, 4mA
Supply Voltage2 V ~ 3.6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 3.6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVX32SJX
74LVX32SJX
