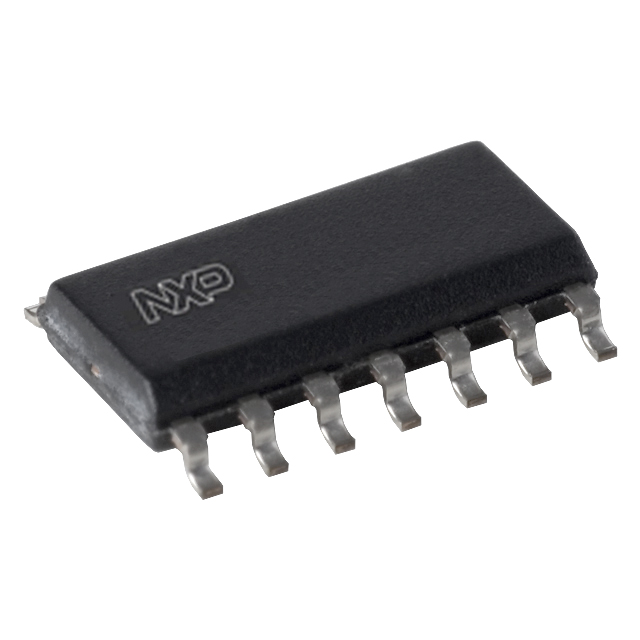

74LVC74AD,112

74LVC74AD,112



Производитель:

NXP Semiconductors
Описание:
 IC DUAL D FF POS-EDGE 14SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74LVC74AD,112

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LVC74AD,112
VendorNXP Semiconductors
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case14-SOIC (3.9mm Width), 14-SOL
FunctionSet and Reset
Number of Bits per Element1
Number of Elements2 - Dual
Current - Output High, Low24mA, 24mA
Output TypeDifferential
Trigger TypePositive Edge
TypeD-Type
PackagingTube
Operating Temperature-40°C ~ 125°C
Delay Time - Propagation-
Frequency - Clock250MHz
Voltage - Supply2.7 V ~ 3.6 V
Drawing Number568; SOT108; ;
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVC74AD,112
74LVC74AD,112
