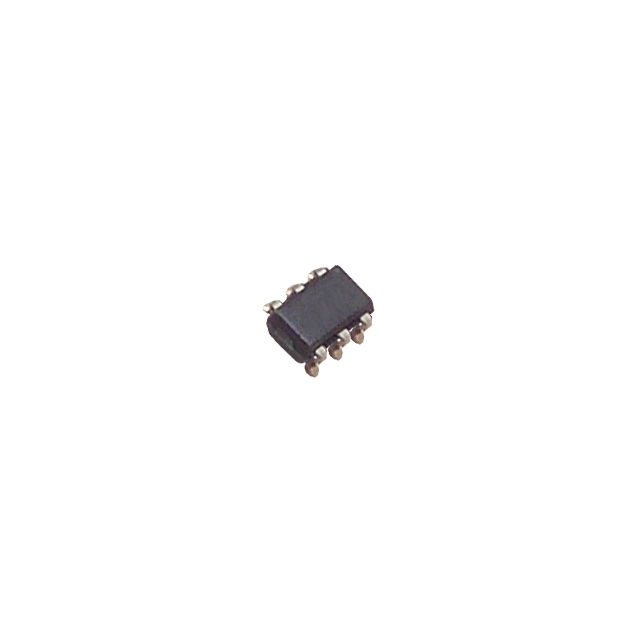

74LVC1G3157DCKRE4

74LVC1G3157DCKRE4



Производитель:

Texas Instruments
Описание:
 IC SWITCH ANALOG SPDT SC70-6
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 74LVC1G3157DCKRE4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LVC1G3157DCKRE4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeSwitch
Voltage Supply SourceSingle Supply
Voltage - Supply, Single/Dual (±)1.65 V ~ 5.5 V
Circuit1 x SPDT
On-State Resistance7 Ohm
Mounting TypeSurface Mount
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
PackagingTape & Reel (TR)
Current - Supply1??A
Operating Temperature-40°C ~ 85°C
FunctionSwitch
Drawing Number296; 4093553-4; DCK; 6
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVC1G3157DCKRE4
74LVC1G3157DCKRE4
