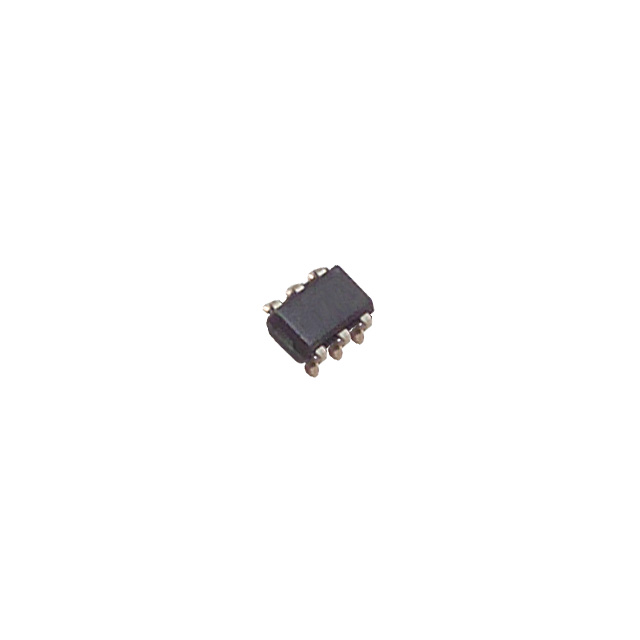

74LVC1G0832DCKTE4

74LVC1G0832DCKTE4



Производитель:

Texas Instruments
Описание:
 IC SNGL 3IN POS-AND-OR SC70-6
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74LVC1G0832DCKTE4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LVC1G0832DCKTE4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Logic Type3 Input And/Or Gate
Current - Output High, Low32mA, 32mA
Output TypeSingle-Ended
Schmitt Trigger InputNo
Voltage - Supply1.65 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Number of Inputs3
Mounting TypeSurface Mount
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
PackagingTape & Reel (TR)
Drawing Number296; 4093553-4; DCK; 6
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVC1G0832DCKTE4
74LVC1G0832DCKTE4
