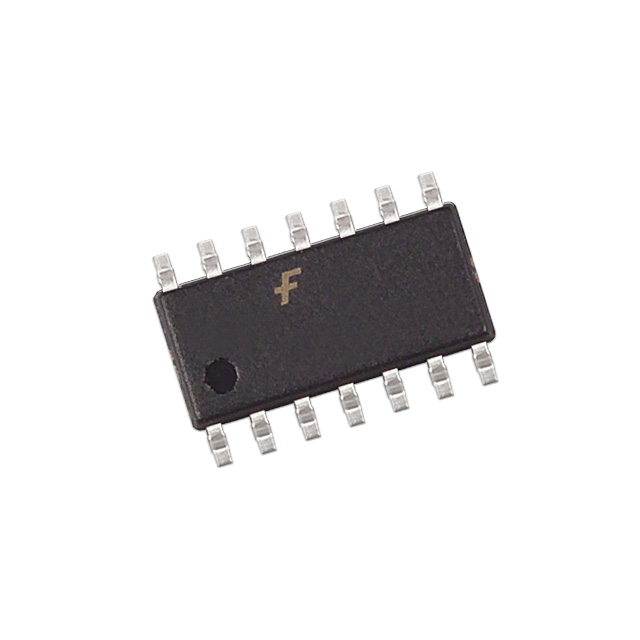

74LCX04SJX

74LCX04SJX



Производитель:

Fairchild Semiconductor
Описание:
 IC INVERTER HEX LV 5VIN 14SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 74LCX04SJX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LCX04SJX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeInverter
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low24mA, 24mA
Supply Voltage2 V ~ 3.6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 3.6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LCX04SJX
74LCX04SJX
