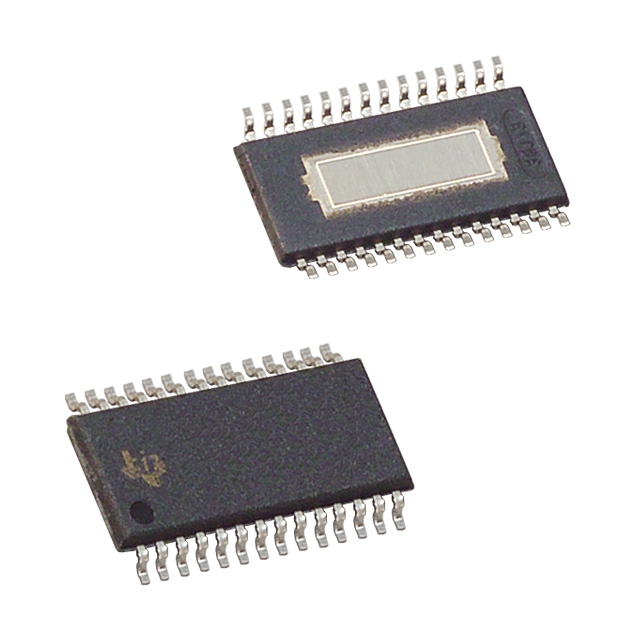

TLC5941PWP

TLC5941PWP



Производитель:

Texas Instruments
Описание:
 IC LED DRVR PWM CONTROL 28-TSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 HTSSOP
Год:
 20081.65

Datasheet (Техническое описание) TLC5941PWP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTLC5941PWP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Package / Case28-TSSOP Exposed Pad, 28-eTSSOP, 28-HTSSOP
PackagingTube
Current - Output / Channel80mA
Number of Outputs16
TypePWM Control
Voltage - Supply3 V ~ 5.5 V
Voltage - Output17V
TopologySmart
Frequency30MHz
Operating Temperature-40°C ~ 85°C
Efficiency-
Drawing Number296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TLC5941PWP
TLC5941PWP
296 18617 5 ND
296186175ND
296-18617-5
