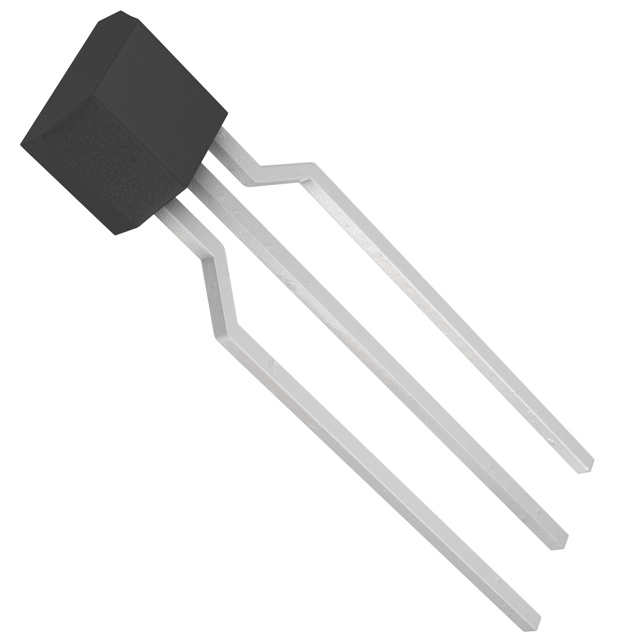

DTD114ESTP

DTD114ESTP



Производитель:

Rohm Semiconductor
Описание:
 TRANSISTOR NPN 50V 500MA SPT TB
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) DTD114ESTP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationDTD114ESTP
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)500mA
Power - Max300mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)10K
Vce Saturation (Max) @ Ib, Ic300mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce56 @ 50mA, 5V
Frequency - Transition200MHz
Mounting TypeThrough Hole
Package / CaseSC-72-3, SPT
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTD114ESTP
DTD114ESTP
