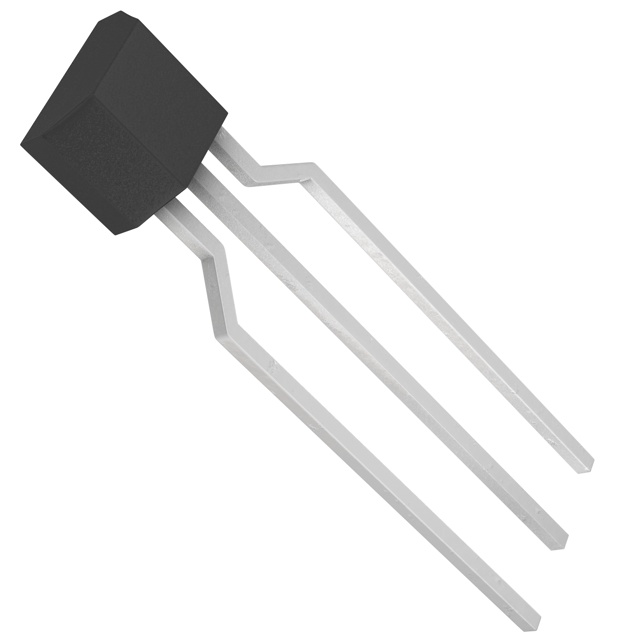

DTC143ESATP

DTC143ESATP



Производитель:

Rohm Semiconductor
Описание:
 TRANSISTOR NPN 50V 100MA SPT TB
Категория:
 Discrete Semiconductor Products
Корпус:
 TO92???
Год:
 06+

Datasheet (Техническое описание) DTC143ESATP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationDTC143ESATP
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max300mW
Resistor - Base (R1) (Ohms)4.7K
Resistor - Emitter Base (R2) (Ohms)4.7K
Vce Saturation (Max) @ Ib, Ic300mV @ 500??A, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 10mA, 5V
Frequency - Transition250MHz
Mounting TypeThrough Hole
Package / CaseSC-72-3, SPT
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTC143ESATP
DTC143ESATP
