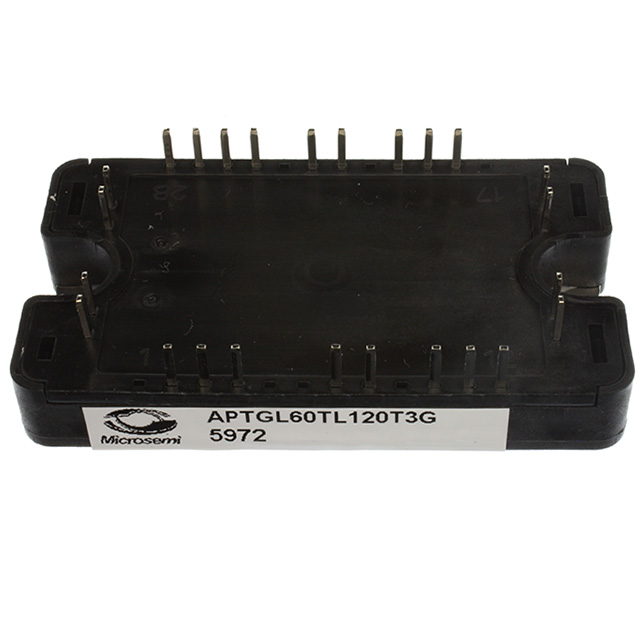

APTGL60TL120T3G

APTGL60TL120T3G



Производитель:

Microsemi-PPG
Описание:
 POWER MODULE IGBT 1200V 60A SP3
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APTGL60TL120T3G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPTGL60TL120T3G
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Configuration*
InputStandard
Voltage - Collector Emitter Breakdown (Max)1200V
Current - Collector (Ic) (Max)80A
Power - Max280W
Vce(on) (Max) @ Vge, Ic2.2V @ 15V, 50A
Current - Collector Cutoff (Max)1mA
NTC ThermistorYes
Input Capacitance (Cies) @ Vce2.77nF @ 25V
Mounting TypeChassis Mount
Package / CaseSP3
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APTGL60TL120T3G
APTGL60TL120T3G
APTGL60TL120T3GMI ND
APTGL60TL120T3GMIND
APTGL60TL120T3GMI
