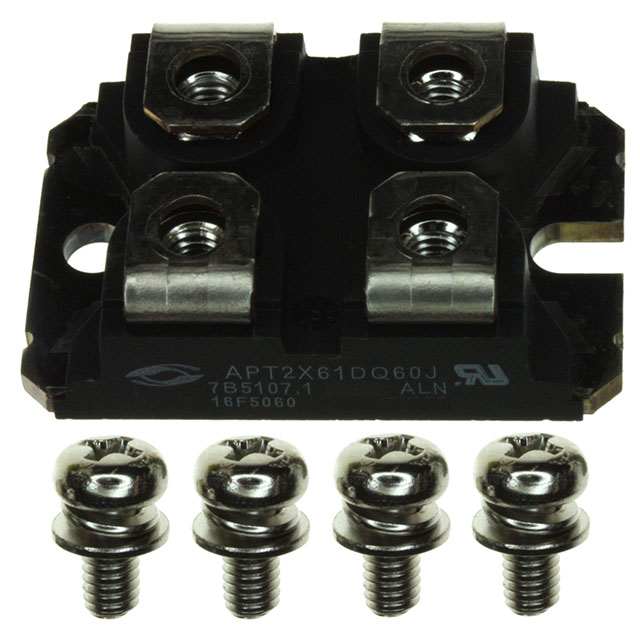

APT2X61DQ60J

APT2X61DQ60J



Производитель:

Microsemi-PPG
Описание:
 DIODE DUAL PAR 60A 600V SOT-227
Категория:
 Discrete Semiconductor Products
Корпус:
 TO
Год:
 --

Datasheet (Техническое описание) APT2X61DQ60J

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT2X61DQ60J
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration2 Independent
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io) (per Diode)60A
Voltage - Forward (Vf) (Max) @ If2.3V @ 60A
Current - Reverse Leakage @ Vr25??A @ 600V
Reverse Recovery Time (trr)70ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeChassis Mount
Package / CaseSOT-227
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT2X61DQ60J
APT2X61DQ60J
APT2X61DQ60JMI ND
APT2X61DQ60JMIND
APT2X61DQ60JMI
