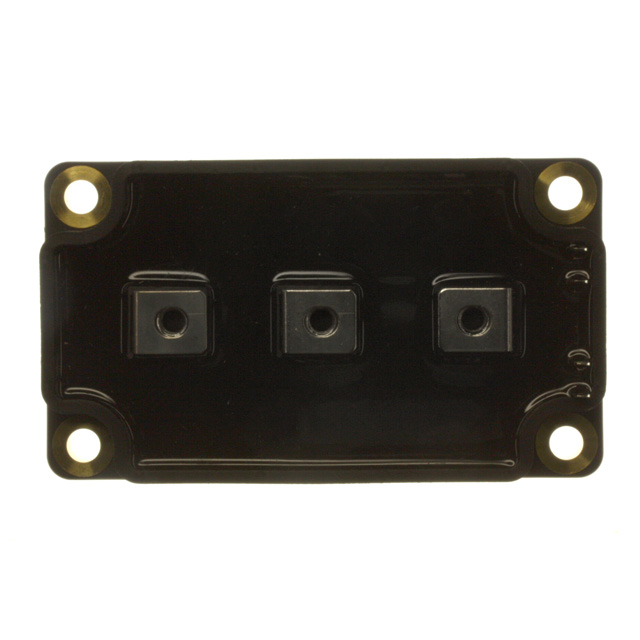

APTM10AM02FG

APTM10AM02FG



Производитель:

Microsemi-PPG
Описание:
 PWR MODULE MOSFET 100V 495A SP6
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APTM10AM02FG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPTM10AM02FG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Mounting TypeChassis Mount
FET Polarity2 N-Channel (Half Bridge)
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25° C495A
Rds On (Max) @ Id, Vgs2.5 mOhm @ 200A, 10V
Input Capacitance (Ciss) @ Vds 40000pF @ 25V
Power - Max1250W
PackagingBulk
Gate Charge (Qg) @ Vgs1360nC @ 10V
Package / CaseSP6
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APTM10AM02FG
APTM10AM02FG
APTM10AM02FGMI ND
APTM10AM02FGMIND
APTM10AM02FGMI
