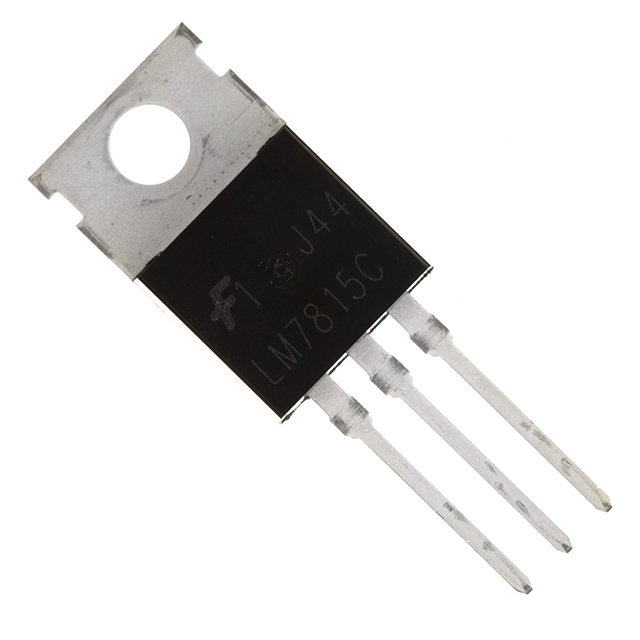

LM7815CT

LM7815CT



Производитель:

Fairchild Semiconductor
Описание:
 IC REG 1A POS VOLT 3TERM TO-220
Категория:
 Integrated Circuits (ICs)
Корпус:
 TO220
Год:
 05+

Datasheet (Техническое описание) LM7815CT

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLM7815CT
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
Regulator TopologyPositive Fixed
Current - Output1A
Voltage - Output15V
Operating Temperature-40°C ~ 125°C
Voltage - Input17.5 ~ 30 V
Number of Regulators1
Current - Limit (Min)2.2A
Current Short Circuit (Isc)230mA
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LM7815CT
LM7815CT
LM7815CTFS ND
LM7815CTFSND
LM7815CTFS
