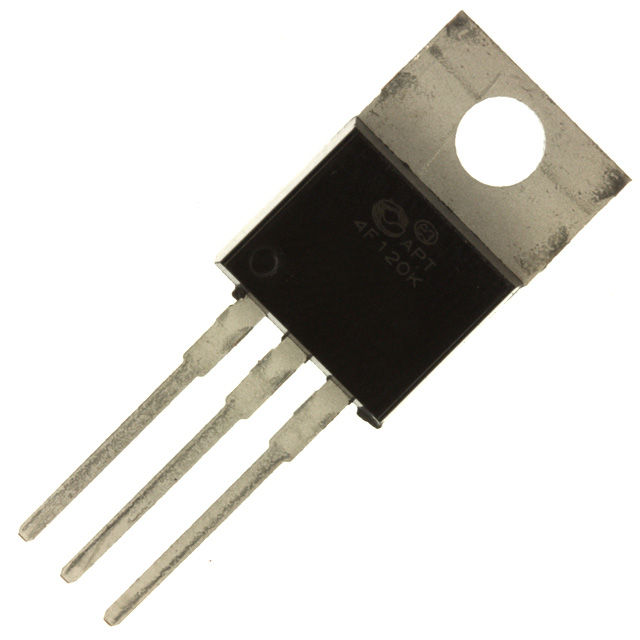

APT4F120K

APT4F120K



Производитель:

Microsemi-PPG
Описание:
 MOSFET N-CH 1200V 4A TO-220
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 `06+(pb-free)

Datasheet (Техническое описание) APT4F120K

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT4F120K
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25° C4A
Rds On (Max) @ Id, Vgs4.6 Ohm @ 2A, 10V
Input Capacitance (Ciss) @ Vds 1385pF @ 25V
Power - Max225W
PackagingTube
Gate Charge (Qg) @ Vgs43nC @ 10V
Package / CaseTO-220
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT4F120K
APT4F120K
APT4F120KMI ND
APT4F120KMIND
APT4F120KMI
