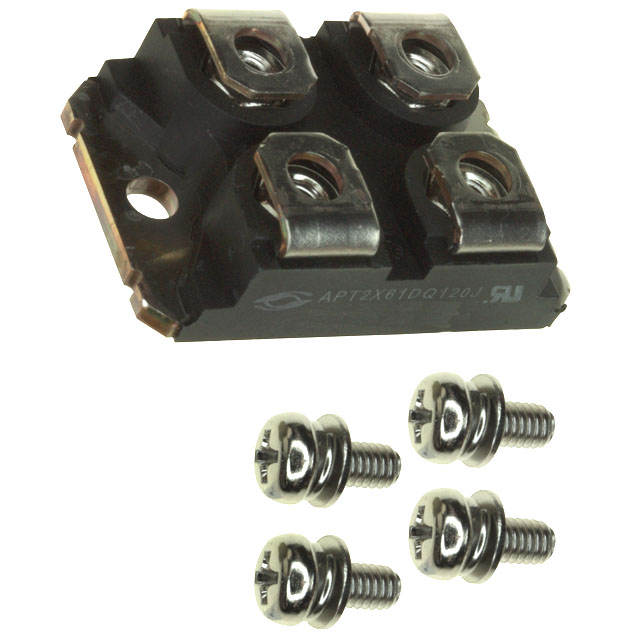

APT2X61DQ120J

APT2X61DQ120J



Производитель:

Microsemi-PPG
Описание:
 DIODE DUAL PAR 60A 1200V SOT-227
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) APT2X61DQ120J

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT2X61DQ120J
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration2 Independent
Voltage - DC Reverse (Vr) (Max)1200V (1.2kV)
Current - Average Rectified (Io) (per Diode)60A
Voltage - Forward (Vf) (Max) @ If3.1V @ 60A
Current - Reverse Leakage @ Vr100??A @ 1200V
Reverse Recovery Time (trr)265ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeChassis Mount
Package / CaseSOT-227
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT2X61DQ120J
APT2X61DQ120J
APT2X61DQ120JMI ND
APT2X61DQ120JMIND
APT2X61DQ120JMI
