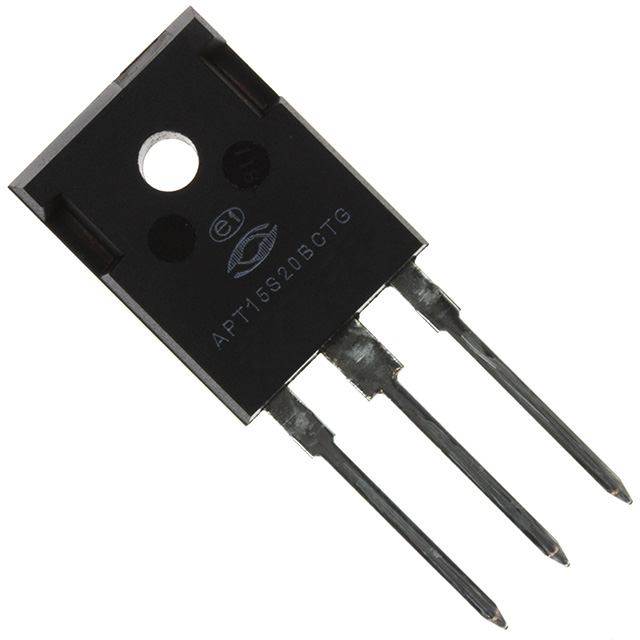

APT15S20BCTG

APT15S20BCTG



Производитель:

Microsemi-PPG
Описание:
 DIODE SCHOTTKY 2X25A 200V TO-247
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-247 [B]
Год:
 07+(pb-free)

Datasheet (Техническое описание) APT15S20BCTG

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationAPT15S20BCTG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Schottky
Diode Configuration1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io) (per Diode)25A
Voltage - Forward (Vf) (Max) @ If830mV @ 15A
Current - Reverse Leakage @ Vr250??A @ 200V
Reverse Recovery Time (trr)80ns
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Radial
Package / CaseTO-247
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT15S20BCTG
APT15S20BCTG
APT15S20BCTGMI ND
APT15S20BCTGMIND
APT15S20BCTGMI
